4CH 720P Real Time Recording 4G Car DVR With Free CMS

Ask Lasest Price
Brand Name :	Anyuan
Model Number :	AY-MR9204AHD
Certification :	CE, FCC
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Supply Ability :	50K per month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

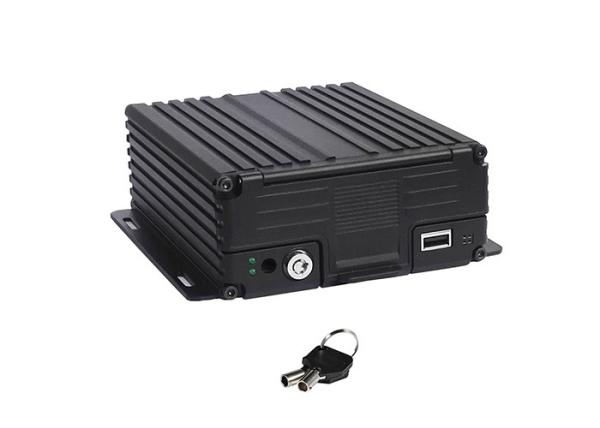

4CH 720P Real Time Recording 4G Car DVR With Free CMS

4G Car DVR 4ch 720P Car Mobile DVR With Free CMS And Server, 4G/WIFI/GPS G Sensor HDD/SSD

•Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image quality
•4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
•4CH local recording with 720P resolution in real time

Power:
•Professional In-Vehicle power design, 10-36V DC Wide Voltage Range
•Multi protection circuits like under-voltage, short, reversed plug-in
•Smart power management system, shutdown under low voltage, low consumption

Data Storage:

•Support 2.5 inch HDD/SSD, maximum 2TB
•Support SD card storage, maximum 256GB
Transmission Interface:
•Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
•Support GPS/BD optional, high sensitivity, fast positioning
•Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
•Special file management system to encrypt and protect the data
•Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
•Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage

Technical parameter:
Item	Device parameter	Performance
System	Main processor	Hi3520DV200
	Operating system	Embedded Linux OS
	Operating language	Chinese/English
	Operating interface	GUI, support mouse
	Password security	User password/Admin password
Audio & Video	Video standard	PAL/NTSC
	Video compression	H.264
	Image resolution	720P /960H/D1/CIF
	Playback quality	720P /960H/D1/CIF
	Compound mode	4ch 720P/4ch 960H/2ch 720P+2ch 960H
	Decoding ability	1ch 720P real time
	Recording quality	Class 1-6 optional
	Image display	Single/QUAD display optional
	Audio Compression	G.726
	Audio recording	Audio & Video synchronized recording
Recording & Playback	Recording mode	Manual/Alarm
	Video bit rate	Full frame 4096Mbps,6 classes image quality optional
	Audio bit rate	8KB/s
	Storage media	SD card + HDD/SSD storage
	Video inquiry	Inquiry by channel/Recording type
	Local playback	Playback by file
Firmware upgrading	Upgrading mode	Manual/Automatical/Remote/Emergency Recovery
Firmware upgrading	Upgrading method	USB disk/Wireless network/SD card
Interface	AV input	4ch aviation interface
	AV output	1ch VGA video output, 1ch aviation AV output
	Alarm input	4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
	HDD/SSD	1 HDD/SSD (up to 2TB, support hot plug/unplug)
	SD card	1 SDXC High speed card (up to 256GB)
	USB interface	1 USB 2.0 (support U disk/mouse)
	Ignition input	1 ACC signal
	UART	1 LVTTL Level
	LED Indication	PWR/RUN
	Disk lock	1
	Debug port	1
Function extention	GPS/BD	Support detecting antenna Plug in/Unplug/Short circuit
	3G/4G	Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
	WIFI	802.11b/g/n, 2.4GHz
Others	Power input	10~36V DC
	Power output	5V 300mA
	Power consumption	Standby 3mA
	Power consumption	Maximum consumption 18W @12V 1.5A @24V 0.75A
	Working temperature	-20 --- 70℃
	Storage	720P 1G/h/channel
	Storage	960H 750M/h/channel
	Dimension	162mm153mm52mm

(optional)Support GPS track playback in the platform.

China 1080/720P H.265 4G GPS WIFI RS232/485 4CH AHD 256GB mini SD Card Mobile DVR
Driving with HD Monitor(optional)to eliminate driving blind spots.

4G/WIFI Remotely live view through CMSV6 in PC/Mobile phone:

(Free software, clientes could use our server or establish their server, if clients prefer to set up their own server, server software will be provided free of charge.)
