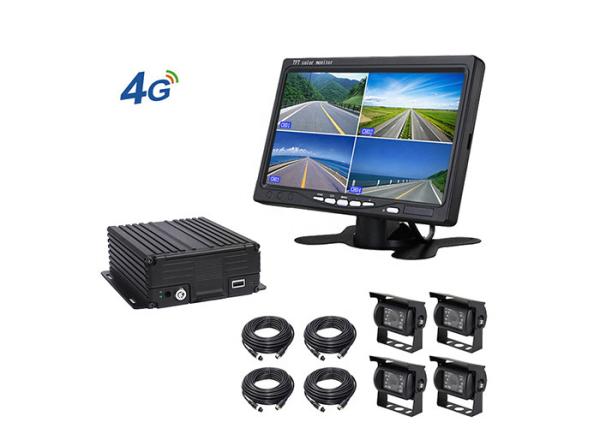

4G Mobile DVR Hot Seller 4ch 720P AHD High Definition 4G GPS WIFI
HARD DISK HDD/SSD Mobile DVR MDVR
Product Introduction:
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real
time monitoring, applied with car cameras used for vehicle
monitoring in bus, taxi, school, bus, truck, police car, tour bus,
tanker truck, escort car etc. Operated with CMS (Central Monitoring
Software) to realize fleet management online, and achieve a full
range of car monitoring functions such as real time video & audio
monitoring, GPS, car tracking, GEO-Fence, voice intercom, car
temperature, car alarms, driving route record, Text to Speech, PTZ
control, anti fuel theft, anti hijack, even as car black box for
car crash recorder, real time car monitoring via mobile phones of
iPhone, Android, iPad system.
4G/WIFI Remotely live view through CMSV6 in PC/Mobile phone:
(Free software, clientes could use our server or establish their
server, if clients prefer to set up their own server, server
software will be provided free of charge.)
• Built-in high performance Hisilicon chipsets, coded with H.264
standard, high compression rate and image quality
• 4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH
synchronized AV output, 1CH VGA output
• 4CH local recording with 720P resolution in real time
Power:
• Professional In-Vehicle power design, 10-36V DC Wide Voltage
Range
• Multi protection circuits like under-voltage, short, reversed
plug-in
• Smart power management system, shutdown under low voltage, low
consumption
Data Storage:
• Special file management system to encrypt and protect the data
• Proprietary technology to detect the bad track of the hard drive
which can make sure the continuity of video and long service life
of the hard drive
• Built-in ultracapacitor, avoid data loss and sd card damage
caused by sudden outage
• Support 2.5 inch HDD/SSD, maximum 2TB
• Support SD card storage, maximum 256GB
Transmission Interface:
• Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
• Support GPS/BD optional, high sensitivity, fast positioning
• Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
| Technical parameter: |
| Item | Device parameter | Performance |
| System | Main processor | Hi3520DV200 |
| Operating system | Embedded Linux OS |
| Operating language | Chinese/English |
| Operating interface | GUI, support mouse |
| Password security | User password/Admin password |
| Audio & Video | Video standard | PAL/NTSC |
| Video compression | H.264 |
| Image resolution | 720P /960H/D1/CIF |
| Playback quality | 720P /960H/D1/CIF |
| Compound mode | 4ch 720P/4ch 960H/2ch 720P+2ch 960H |
| Decoding ability | 1ch 720P real time |
| Recording quality | Class 1-6 optional |
| Image display | Single/QUAD display optional |
| Audio Compression | G.726 |
| Audio recording | Audio & Video synchronized recording |
| Recording & Playback | Recording mode | Manual/Alarm |
| Video bit rate | Full frame 4096Mbps,6 classes image quality optional |
| Audio bit rate | 8KB/s |
| Storage media | SD card + HDD/SSD storage |
| Video inquiry | Inquiry by channel/Recording type |
| Local playback | Playback by file |
| Firmware upgrading | Upgrading mode | Manual/Automatical/Remote/Emergency Recovery |
| Upgrading method | USB disk/Wireless network/SD card |
| Interface | AV input | 4ch aviation interface |
| AV output | 1ch VGA video output, 1ch aviation AV output |
| Alarm input | 4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger) |
| HDD/SSD | 1 HDD/SSD (up to 2TB, support hot plug/unplug) |
| SD card | 1 SDXC High speed card (up to 256GB) |
| USB interface | 1 USB 2.0 (support U disk/mouse) |
| Ignition input | 1 ACC signal |
| UART | 1 LVTTL Level |
| LED Indication | PWR/RUN |
| Disk lock | 1 |
| Debug port | 1 |
| Function extention | GPS/BD | Support detecting antenna Plug in/Unplug/Short circuit |
| 3G/4G | Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
| WIFI | 802.11b/g/n, 2.4GHz |
| Others | Power input | 10~36V DC |
| Power output | 5V 300mA |
| Power consumption | Standby 3mA |
| Maximum consumption 18W @12V 1.5A @24V 0.75A |
| Working temperature | -20 --- 70℃ |
| Storage | 720P 1G/h/channel |
| 960H 750M/h/channel |
| Dimension | 162mm*153mm*52mm |
