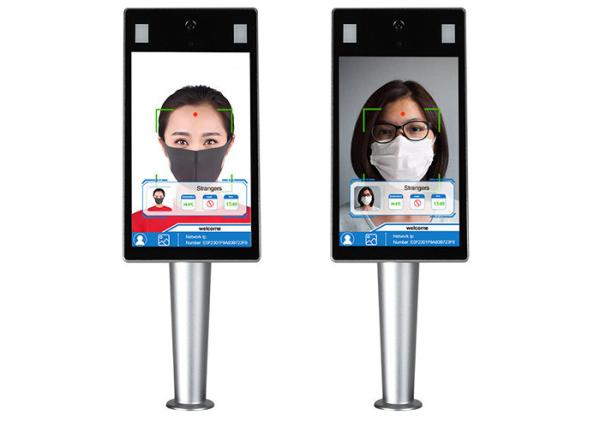

Facial Recognition Sensor Access Control LCD IR Body Temperature
Scanner With Face Recognition Detection
Features:
- 7-inch IPS HD display
- IP34 rated dust and water resistant
- MTBF> 50000 H
- Support binocular live detection
- Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
- Support human motion tracking exposure in strong backlight
environment, support machine vision optical wide dynamic ≥80dB
- Adopt Linux operating system for better system stability
- Support 22400 face comparison library and 100,000 face
recognition records
- Support one Wiegand input or Wiegand output
- Supports fog through, 3D noise reduction, strong light
suppression, electronic image stabilization, and has multiple white
balance modes, suitable for various fields Scene demand
- Support temperature data SDK and HTTP protocol docking
- Automatically register and record information, avoid manual
operation, improve efficiency and reduce missing information
- Support mid-range temperature measurement and real-time warning
of high temperature
- Support electronic voice broadcast (normal human body temperature
or super high alarm, face recognition verification results)
- Non-contact automatic body temperature detection, brush human
face and perform high-precision infrared human temperature
acquisition at the same time, fast and high effect
- Temperature measurement range 30-45 (℃) Accuracy ± 0.3 (℃)
- Automatically identify unmasked personnel and provide real-time
warning
- Rich interface protocols, support SDK and HTTP protocols under
multiple platforms such as Windows / Linux

Specification:
Model | AY-TN2M7A |
Hardware |
Chipset | Hi3516DV300 |
System | Linux operation system |
RAM | 16G EMMC |
Image sensor | 1/2.7" CMOS |
Lens | 4.5mm |
Camera Parameters |
Camera | Binocular camera supports live detection |
Effective pixel | 2Mega pixel,1920*1080 |
Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
SNR | ≥50db(AGC OFF) |
WDR | ≥80db |
Face Recognition |
Height | 1.2-2.2 M, angle adjustable |
Distance | 0.5-2 Meters |
View angle | Vertical ±40 degree |
Reco. Time | <500ms |
Temperature |
Range | 30-45(℃) |
Accuracy | ±0.3(℃) |
Distance | 0.3-0.8m |
Response time | <300ms |
Interface |
Internet interface | RJ45 10M/100M Ethernet |
Weigand port | Support input/output 26 and 34 |
Alarm output | 1channel relay output |
USB port | 1USB port (Can be connected to ID identifier) |
General |
Power input | DC 12V/3A |
Power consumption | 20W(MAX) |
Working temperature | 0℃ ~ +50℃ |
Humidity | 5~90%, no condense |
Dimension | 123.5(W) * 84(H) *361.3(L)mm |
Weight | 2.1 kg |
Column aperture | 33mm |
FAQ
1. Are you a manufacturer or trader?
We are a manufacturer .Development,production,sales integration
,leading video surveillance solution provider with globla
perspective.Surveillance solution,home security solution .welcome
customized order, offer OEM/ODM service.
2. What kind of certificates do you have?
CE, FCC, RohS
3. What’s the payment?
We accept TT, Paypal , Western Union or others method.
4. What is lead time?
3-7 working days, On-Time delivery.
5. Is small samples order available?
Yes, we do not only supply MOQ order, but also small samples order
for trial test or small projects.
