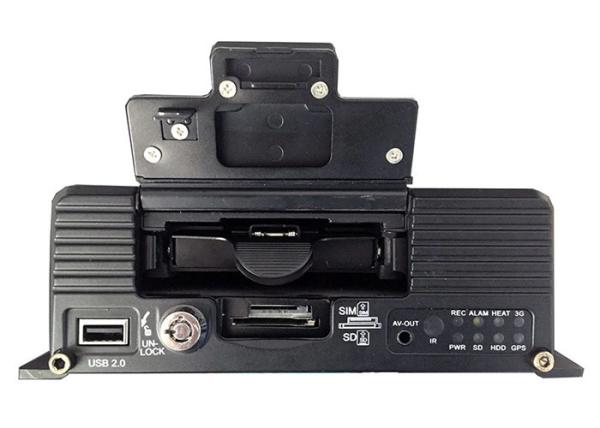

4G Mobile DVR 4ch 720P Hybrid AHD IPC 4G GPS WIFI G-Sensor Truck
/Excavator/Forklift Real Time Vehicle Recorder
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real
time monitoring, applied with car cameras used for vehicle
monitoring in bus, taxi, school, bus, truck, police car, tour bus,
tanker truck, escort car etc. Operated with CMS (Central Monitoring
Software) to realize fleet management online, and achieve a full
range of car monitoring functions such as real time video & audio
monitoring, GPS, car tracking, GEO-Fence, voice intercom, car
temperature, car alarms, driving route record, Text to Speech, PTZ
control, anti fuel theft, anti hijack, even as car black box for
car crash recorder, real time car monitoring via mobile phones of
iPhone, Android, iPad system.
★4 x 720P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P) ,
support 960P AHD camera
★ Built-in 1 x POE(12V) Ethernet Port
★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB)
for backup(at 3G/4G/Wi-Fi model option)
★ Internal G-Sensor, with GPS, 4G FDD and Wi-Fi (5.8 Ghz)
★ 2 WIFI Antennas (download speed up to 3Mb/s)
★ Anti-Vibration and Anti-Shock under acceleration of 40G (
MIL-STD-810G standard)
★ Hard drive automatic heating startup in cold weather
★ On board UPS 8 seconds delay power-off for data protection
★ Operating temperature -40℃ ~ +80℃
★ 8V-36V wide voltage power supply
★Operated with CMS (Central Monitoring Software) to realize fleet
management online
★Real time video & audio monitoring, GPS, car tracking, GEO-Fence,
voice intercom, car temperature, car alarms, driving route record,
Text to Speech, PTZ control, anti fuel theft, anti hijack, car
black box for car crash recorder, real time car monitoring via
mobile phones of iPhone, Android, iPad system.
| Function | Performance | |
| System | Language | English / Chinese | |
| Operation Interface | Graphical User Interface(OSD menu) | |
| Password Security | 2 Levels: Administrator & User | |
| Video | Video Input | Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input | |
| Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input | |
| Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video
input | |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) | |
| Image Compression | H.264 Main profile | |
| Audio | Audio Input | 4 Channels | |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port) | |
| Record Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P optional | |
| Video Coding | ISO14496-10 Industry Standard | |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | |
| 960H: 2048Kbps ~ 400Kbps, | |
| 720P:4096Kbps ~ 400Kbps | |
| Select from 8 Levels of Video Image Quality ranging from 1
(Highest) to 8 (Lowest) | |
| Audio Bit Rate | 40Kbps | |
| Storage | Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model
option) | |
| Alarm | Alarm Input | 8 Channels, Select Trigger for either less than 1VDC or greater
than 5VDC | |
| Alarm Output | 1 Channel, 12V output | |
| Communication Ports | RS485 | 1 Port for PTZ control or Data Device usage | |
| RS232 | 2 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45, For connection to an IP camera with maximum of
1080P | |
| USB | 2 Ports for USB 2.0, the front panel one to download video files &
upgrade firmware; the rear panel one is optional. | |
| Wireless Communication* | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal
module | |
| 4G* | 4G (TDD-LTE / FDD-LTE) optional module to match local cellular
carrier | |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional | |
| GPS* | Int'l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed
information | |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and
Z coordinates | |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for
playback on PC. Limited playback is also available on MDVR | |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V
monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through the front USB2.0 or remotely via IVMS platform | |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the
installation of the MDVR and its accessories to prevent possible
damage | |
| Voltage Output | 12V | 12V(+/-0.2V),Max 3A | |
| ACC Detection | ≤4V | Power-off | |
| ≥6V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω | |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω
resistance | |
| I / O Port | <1V | Low voltage trigger |
