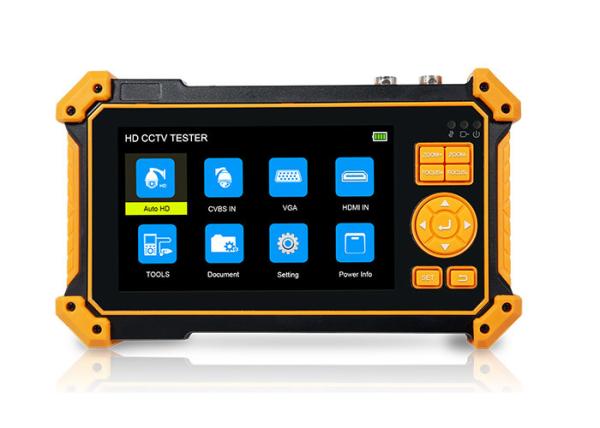

New 8MP HD TVI CVI AHD SDI EX SDI Analog CCTV Camera Tester With
UTC Control And Cable Tracer
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● TVI CVI AHD SDI camera testing
● PTZ controller
Camera test:
● 5 inch TFT-LCD screen, 800*480 resolution
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control &
call OSD menu
● 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD
menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD
menu*
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD
menu*
● 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD menu*
● Auto HD app, auto recognize HD coax camera type and resolution,
support coaxial PTZ & call OSD menu
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video
record & playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record &
playback
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order
and connectivity test, can save testing report, if special number,
need customized. Can detect the near-end, mid-end and far-end fault
point of the RJ45 cable plug
● Digital Cable tracer, search BNC cable, network cable and
telephone cable from the mess cables. Cable search and UTP cable
can test at the same time *
Other Functions:
● Media player, video files and MKV/MP4 media files play.
● High brightness LED light
● Audio in, test whether sound normal
● Power manager function, view 12V supply voltage and power in real
time, can detect whether the voltage and power of DC 12V power
output is normal
● 3.7 V /5200mAh Lithium Ion Battery, after 4 hours charging,
working time lasts 6.5 hours
| LCD | Item series | AY-TC2106ACTS |
| Display | New 5 inch TFT-LCD screen, 800*480 resolution |
| Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with
more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| HD Coaxial test | 8MP TVI camera test, 3840 x
2160P 12.5/15 FPS, UTC control/ call OSD menu |
| 8MP CVI camera test, 3840 x
2160P 12.5/15 FPS, UTC control / call OSD menu |
| 8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu |
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu |
| Auto HD app, auto recognize HD coax camera type and resolution,
support coaxial PTZ & call OSD menu |
| HDMI input | 1 channel HDMI input, support 4K 30FPS. The resolution as follow:
4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P
/1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
| VGA input | 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as
follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P
60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P
60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P
60FPS/800x600P 60FPS/600x480P 60FPS. |
| Power output | 12V/1A power output | DC12V/1A power output, supply temporarily power for the camera |
| 5V 1A power output | 5V 1A power output, support reading USB disk |
| Cable test | Digital Cable tracer * | Search BNC cable, network cable and telephone cable from the mess
cables. Cable search and UTP cable can test at the same time * |
| UTP cable test | Test UTP cable connection status and display on the screen. Can
detect the near-end, mid-end and far-end fault point of the network
cable crystal head. |
| Audio test | 1 channel audio signal input, test whether sound normal. |
| Power management | Display DC 12V input & output voltage and power in real time |
| Power |
| External power supply | DC 5V 2A |
| Battery | Built-in 3.7V Lithium polymer battery, 5200mAh |
| Rechargeable | After charging 4 hours, normal working time 6.5 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese, Deutsch,
Turkish Portuguese, Czech etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 184mm x 110mm x 41mm /0.4kg |
