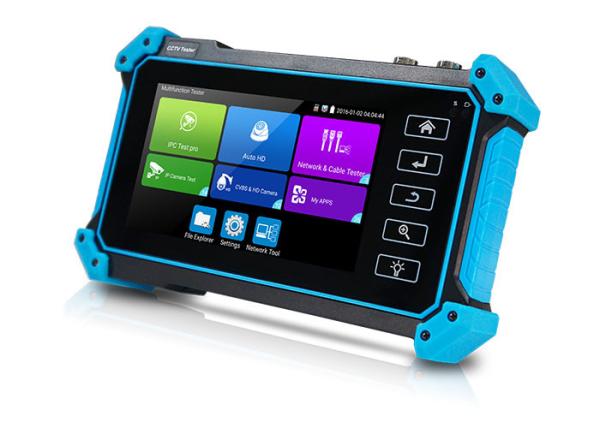

New 5 Inch Touch Screen IP CVBS AHD CVI TVI SDI 6 In 1 4K IPC
Camera Tester With Cable Tracer

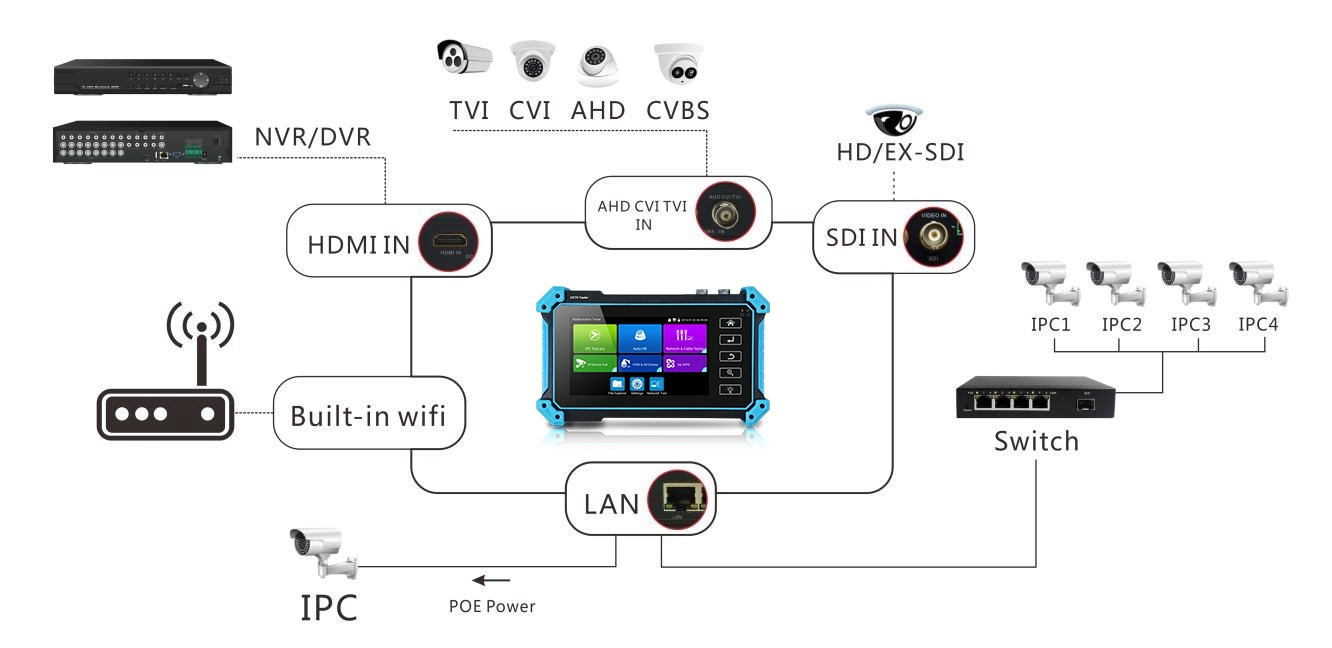

Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● TVI CVI AHD SDI camera testing
● PTZ controller
Camera test:

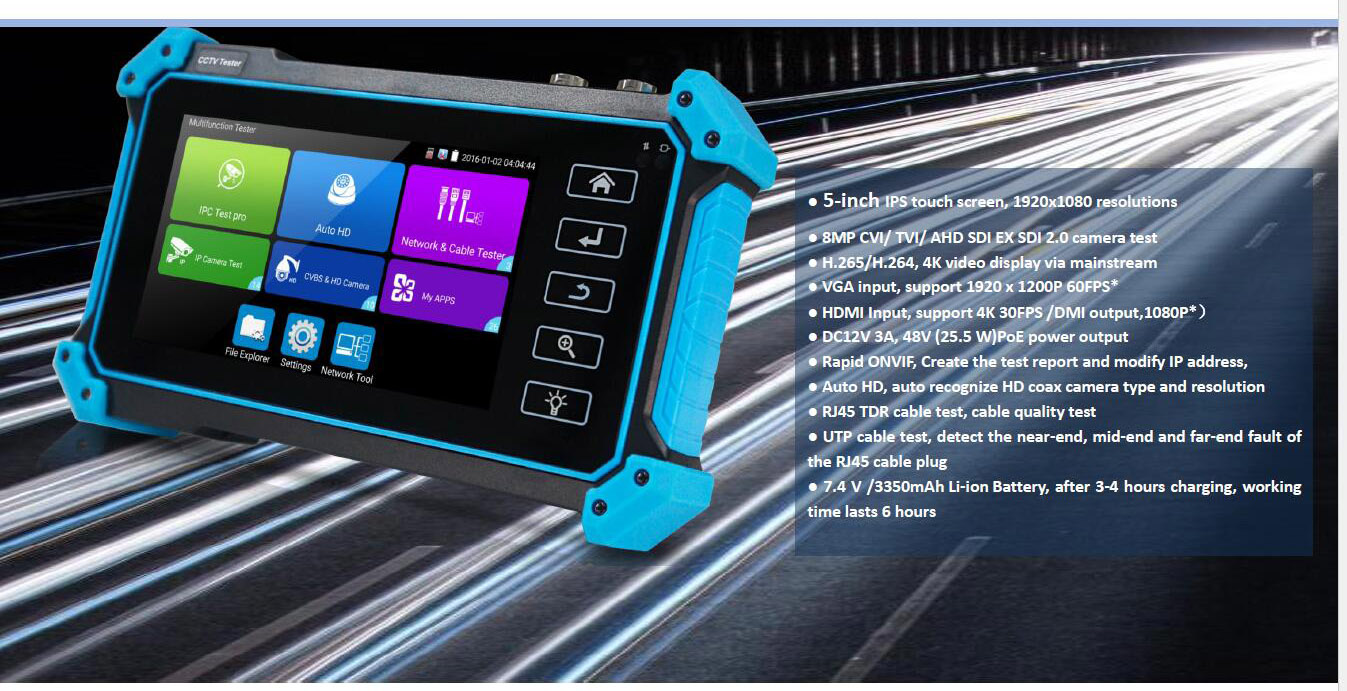

— 5 inch IPS touch screen, 1920*1080 resolution
— H.265 & H .264 IP, 4K video display via mainstream
— 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &
playback ,coaxial PTZ control & call OSD menu *
— 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback,
coaxial PTZ & call OSD menu *
— 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record&
playback, coaxial PTZ & call OSD menu *
— 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD
menu*
— HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, coaxial PTZ & call OSD
menu*
— 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD menu*
— Rapid ONVIF, Auto log in and display image, create testing report
— Len simulation: simulate different lenses display area,supported lens:“2.8/3.6/4/6/8/12/16/25mm”is for to choose camera
lens.
— IP and analog display image at the same time
— IPC TEST (Non-ONVIF test)
— CVBS camera test, PTZ controller
— DC12V/3A power output,camera can be powered from DC 12Votage
— Rapid video, just by one key to detect all network cameras and auto
display
— Built in Wi-Fi, display image from the wireless camera, create WIFI
hotspot
— CVBS loop test, the tester send and receive color bar generator
signal, to check BNC cable
— Enhanced Color bar generator, PAL/NTSC multi-system color bar video
generator
Cable test:
— Improvement cable tester, UTP cable, telephone cable etc order and
connectivity test, can save testing report, if special number, need
customized
— RJ45 cable TDR test, test cable pair status, length, attenuation,
reflectivity, impedance, skew etc
Other Functions:
— Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route
— POE & power information, DC12V& PoE power and voltage output /input
measurement
— Tester Play: Tester, android version mobile phone and PC display at
the same time
— Shortcut button, drop-down menu, can select Poe power, IP setting,
CVBS, LAN info, HDMI IN etc
— VGA input, up to 2048 x 1152 60FPS, support snapshot, video record &
playback*
— HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p
/1280×900p /1440×900p display image ,record and snapshot *
— Traffic monitoring of the tester "LAN port", display network port
or WIFI connection real-time upload and download speeds and other
network parameters
— Customers self-update software, you can install apps with android
version
— Media player, 4K video files and MKV/MP4 media files play
— Quick office, quick office app (support excel ,word ,ppt format )
doc. editable
— Display its genuine resolution of the IP camera images
— Audio in, support record and save the audio/LED lamp, calculators,
music players and other application tools
— 7.4 V /3350mAh Lithium Ion Polymer Battery, after 3~4 hours
charging , working time lasts 6 hours
| LCD | Item series | AY-TC1126IP-ACTSIP-P |
| Display | New 5 inch IPS touch screen, 1920x1080 resolution |
| Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with
more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
IP camera test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video | Auto view the video, create testing report |
| HIKVISION test tool | support batch activate HIKVISION cameras and modify IP address,
modify password etc. Self-defined modify channel name, can quickly
change H.264 and H.265 video, open wide dynamic mode. Factory
restore, etc. |
| DAHUA test tool | support batch activate DAHUA cameras and modify IP address,username
and password. Self-defined modify channel name. |
| HD Coaxial test * | 8MP TVI camera test, 3840 x
2160P 12.5/15 FPS, UTC control/ call OSD menu |
| 8MP CVI camera test, 3840 x
2160P 12.5/15 FPS, UTC control / call OSD menu |
| 8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu |
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu * |
| Auto HD app, auto recognize HD coax camera type and resolution,
support snapshot, video record& playback, coaxial PTZ & call OSD
menu |
| HDMI input* | 1 channel HDMI input, support 4K 30FPS. The resolution as follow:
4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P
/1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
| VGA input* | 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as
follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P
60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P
60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P
60FPS/800x600P 60FPS/600x480P 60FPS. |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and
record and play back |
| Power output | 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera |
| PoE power output | 48V PoE power output, max power 25.5W |
| Cable test | Digital Cable tracer * | Search BNC cable, network cable and telephone cable from the mess
cables. Cable search and UTP cable can test at the same time * |
| UTP cable test | Test UTP cable connection status and display on the screen. Can
detect the near-end, mid-end and far-end fault point of the network
cable crystal head. |
| RJ45 TDR cable test | Test cable pair status,
length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M. |
| Tester Play | screen projection:Tester, mobile phone and PC display at the same time (For android
version mobile phone) |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image |
| Audio test | 1 channel audio signal input, test whether sound normal. |
| Power management | Display DC 12V input & output voltage and power in real time |
| Data monitor | Captures and analyzes the command data from controlling device,
also can send hexadecimal |
| External power supply | DC 12V 1A |
| Battery | Built-in 7.4V Li-ion battery, 3350mAh |
| Rechargeable | After charging 3-4 hours, normal working time 6 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese, Deutsch,
Turkish Portuguese, Czech etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 183mm x 110mm x 36.5mm /0.32kg |
