CCTV Tester 7" CVBS TVI CVI AHD EX-SDI HDMI In Out Backlight
Keyboard Tester

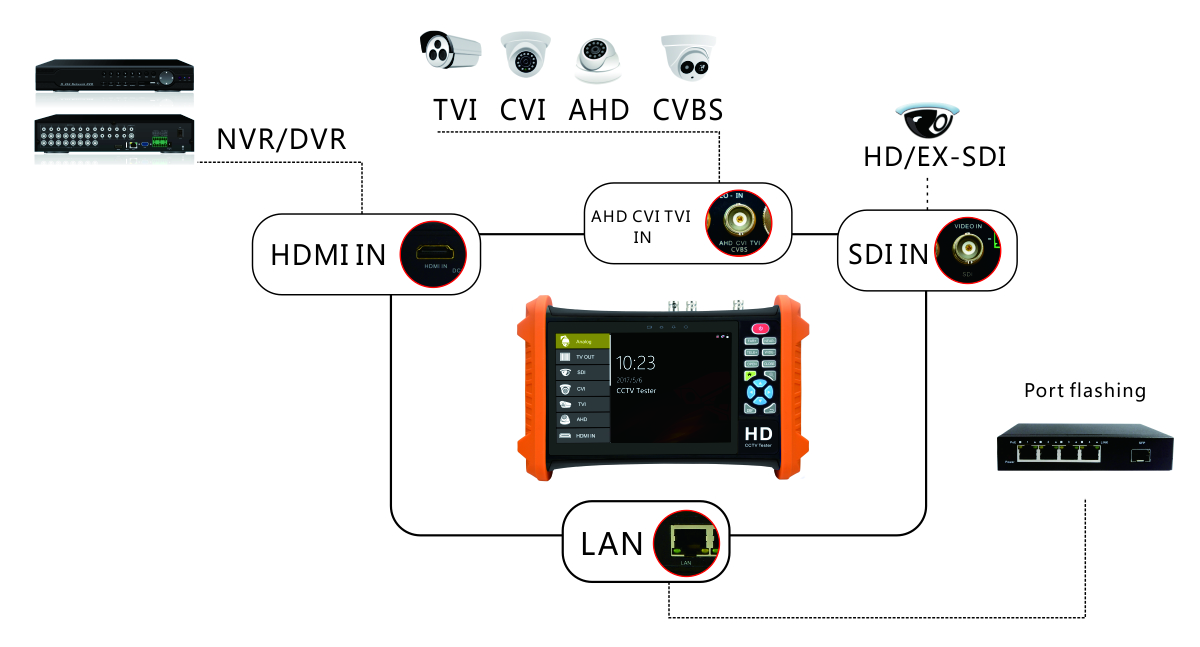

Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, CVBS/8MP TVI/8MP CVI/5MP AHD camera testing
● Video transmission channel testing
● PTZ controller
Camera test:
● 7 inch TFT-LCD screen, 1280*800 resolution
● 8MP TVI test,3840 x 2160P 12.5/15 fps,4xzoom ,video record
&playback ,coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 15 fps, 4xzoom, video record & playback, coaxial PTZ & call OSD
menu
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record&
playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record &
playback, coaxial PTZ & call OSD menu*
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record &
playback, coaxial PTZ & call OSD menu*
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record &
playback, coaxial PTZ & call OSD menu*
● Supports more than 30 protocols such as PELCO-P, PELCO-D, and
SAMSUNG
● CVBS camera test and PTZ control
● Audio in /out, support record and save the audio/LED lamp,
calculators, music players and other application tools
● DC 12V/3A power output
● CVBS loop test, the tester send and receive color bar generator
signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar
video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order
and connectivity test, can save testing report, if special number,
need customized

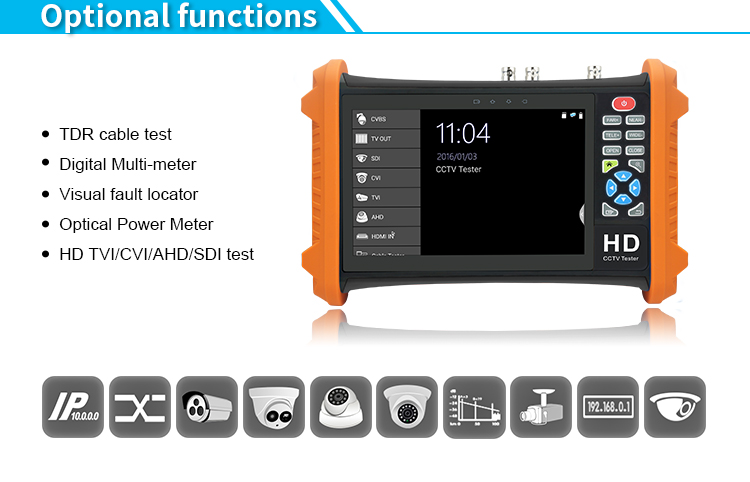

Other functions:
● Network tool: Ping, IP scan, Port Flash etc
● HDMI input,720×480p /720×576p /1280×720p /1920×1080p
/1024×768p/1280×1024p /1280×900p /1440×900p display, record and
snapshot
● Flash light ,can work in the dark
● Software update
● Display its genuine resolution of the IP camera images
● 7.4 V /5000mAh Lithium Ion Polymer Battery, after 5~6 hours
charging , working time lasts 10 hours
| LCD | Item series | AY-TC2206ACTS |
| Display | New 7 inch TFT-LCD screen ,1280*800 resolution |
| Video Mode | CVBS | 1 channel BNC input & 1 channel
BNC looped output, NTSC/PAL (Auto adapt) |
| PTZ control,RS485 control, Baud 600-115200bps, compatible with more
than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| CVBS loop test | the tester send and receive color bar generator signal , check BNC
cable |
| Coaxial HD test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu |
| 8MP CVI camera test: 3840 x 2160P 12.5/15 FPS,UTC control /call OSD
menu |
| 8MP AHD camera test: 3840 x 2160P 15 FPS, UTC control /call OSD
menu |
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu * |
| HDMI Input | 1 channel HDMI input, support
1080P |
| Zoom Image | 4x zoom, to enlarge image,
screen snapshot, record ,save ,view and record and play back |

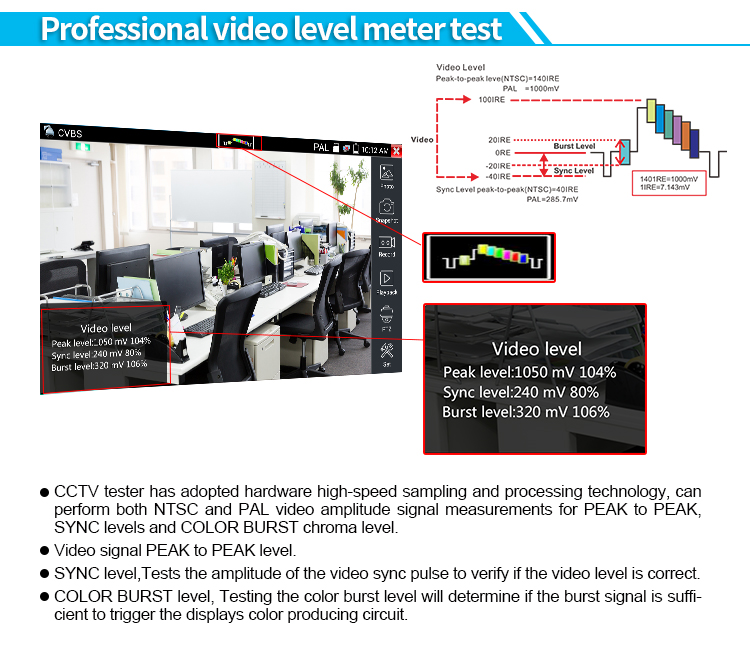

| Analog Video out | color bar generator | Output one channel PAL/NTSC
color bar video signal for testing monitor or video cable |
| HDMI output | 1 channel HDMI output, support 1920*1080P |
| Power output | 12V/3A power output | Output DC 12V/3A power out ,supply temporarily power for the camera |
| | 5V/2A power output | USB 5V 2A power output, as a power bank |

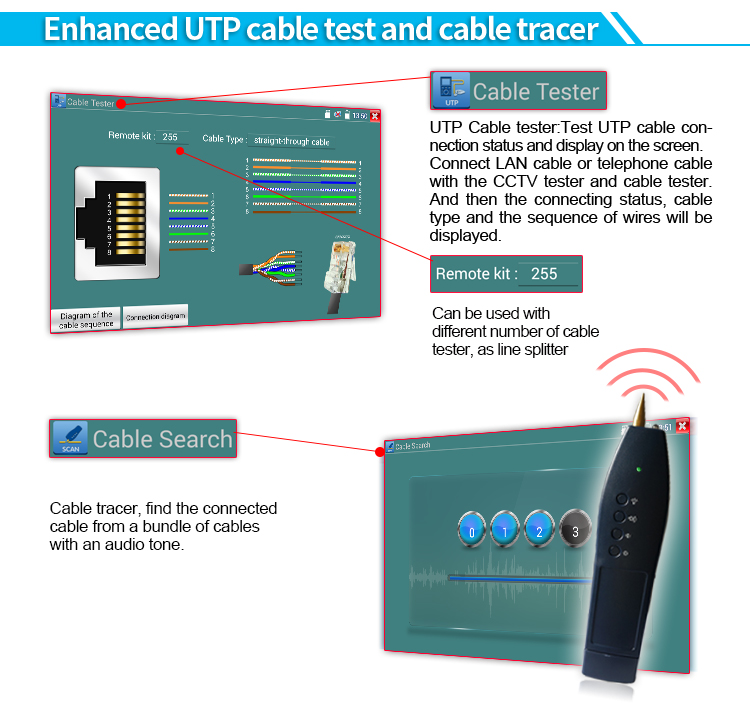

| Cable test | UTP cable test | Test UTP cable connection status and display on the screen. Read
the number on the screen |
| Network test | Trace route, Link monitor ,DHCP server, port flashing, Ping test |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device,also
can send hexadecimal |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 5000mAh |
| Rechargeable | After charging 5-6 hours, normal working time 10 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish,Spanish etc |
| Auto off | 5-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 255mm x 160mm x 46mm / 0.95Kg |
