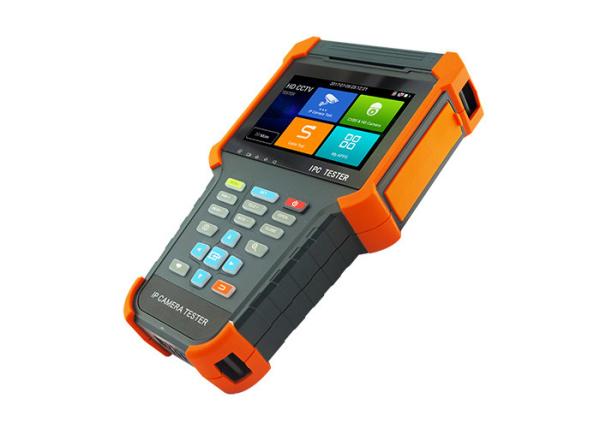

CCTV Tester CVI TVI AHD EX-SDI HD-SDI,3G-SDI IP Camera Handheld 4"
Waterproof Dustproof Interface Tester

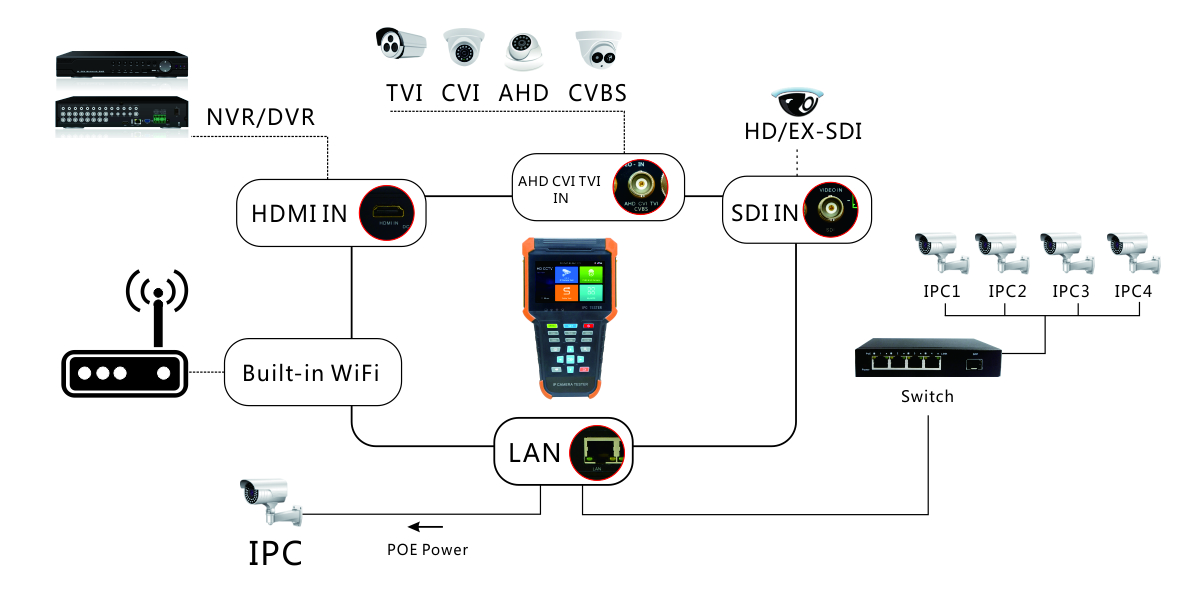

Camera test:
● 4 inch IPS touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record
&playback ,coaxial PTZ control & call OSD menu *
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback,
coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record&
playback, coaxial PTZ & call OSD menu *
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record&
playback, coaxial PTZ & call OSD menu *
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record&
playback, coaxial PTZ & call OSD menu *
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record&
playback, coaxial PTZ & call OSD menu *
● Rapid ONVIF, Auto log in and display image, create testing report
● Len simulation: simulate different lenses display area,supported
lens:“2.8/3.6/4/6/8/12/16/25mm”is for to choose camera lens.
● AXIS, Hikvision camera test, enter ONVIF app, input username and
password to test
● IP and analog display image at the same time
● IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH
test tool (Dahua camera)
● CVBS camera test, PTZ controller
● DC12V/3A power output,camera can be powered from DC 12Votage .
● Rapid video, just by one key to detect all network cameras and
auto display
● Built in Wi-Fi, display image from the wireless camera, create
WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator
signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar
video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order
and connectivity test, can save testing report, if special number,
need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation,
reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable
from the mess cables *
Other Functions:
● Traffic monitoring of the tester "LAN port", display network port
or WIFI connection real-time upload and download speeds and other
network parameters
● Customers self update software, you can install apps with android
version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel ,word ,ppt format )
doc. editable
● 8GB SD card including
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp,
calculators, music players and other application tools
● 7.4 V /4000mAh Lithium Ion Polymer Battery, after 3~4 hours
charging , working time lasts 9 hours
● Network tool: Ping, IP scan, Port Flash ,DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output
/input measurement
● Tester Play: Tester, android version mobile phone and PC display
at the same time
● Shortcut button, drop-down menu, can select Poe power, IP
setting, CVBS, LAN info, HDMI IN etc
● HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p
/1024×768p/1280×1024p /1280×900p /1440×900p display image ,record
and snapshot *
| LCD | Item series | AY-TC1006IP-P |
| Display | New 4 inch IPS touch screen , 800*480 resolution |
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto
adapt) |
| Analog video level meter, peak video signal level, SYNC signal
level, Color bar chroma level measurement* |
| PTZ control,RS485 control, Baud 600-115200bps,compatible with more
than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc |
| CVBS loop test | the tester send and receive color bar generator signal, check BNC
cable |
| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| 4k/H.265/H.264 | Rapid Video | Auto view the video, create testing report |
| | Hik test tool | pressing just one key to activate hikvision camera , Image test,
can modify the user name, password and IP parameters |
| | Dahua test tool | Dahua camera test, modify the username, password and IP parameters |
| IP& CVBS test | IP& CVBS test at the same time ,converter test from analog to
digital with dual test window |
| Coaxial HD test * | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
* |
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control/ call OSD
menu * |
| 8MP AHD test,3840 x 2160P 15FPS, UTC control & call OSD menu* |
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* |
| HDMI input * | 1 channel HDMI input, support 1080P * |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save ,view and
record and play back |
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing
monitor or video cable |
| | 12V/3A power | Output DC12V/3A power out ,supply temporarily power for the camera |
| | PoE power output | 48V PoE power output, max power 25.5W |
| Power output |
| Cable test | TDR cable test * | BNC cable, network cable, telephone cable, RVV cable and elevator
cable, cat 5/6 cable's length and short circuit. measurement range
1.2KM * |
| Cable tracer * | search BNC cable, network cable and telephone cable from the mess
cables * |
| UTP cable test | Test UTP cable connection status and display on the screen. Read
the number on the screen |
| RJ45 cable TDR test | Test cable pair status, length, attenuation, reflectivity,
impedance, skew etc. measurement range 180M. |
| TesterPlay | Screen projection:tester, mobile phone and PC display at the same
time (For android version mobile phone) |
| Network test | Trace route, Link monitor, DHCP server, port flashing , Ping test |
| Wi-Fi | Built in WIFI, speeds 150M,display wireless camera image |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel
audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device,also
can send hexadecimal |
| PoE test | Measurement POE switch or PSE power supply voltage and cable
connection status |
| Drop-down menu | You can select PoE power switch ,IP setting,CVBS, LAN info, HDMI IN
functions etc in any interface |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 4000mAh |
| Rechargeable | After charging 3~4 hours, normal working time 9 hours |
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean,
Russian, Italian, French, Polish, Spanish, Japanese etc |
| Auto off | 1-30 (mins) |
| Working Temperature | -10℃---+50℃ |
| Working Humidity | 30%-90% |
| Dimension/Weight | 204mm x 123mm x 38mm / 0.6kg |
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing
● Video transmission channel testing
● PTZ controller
