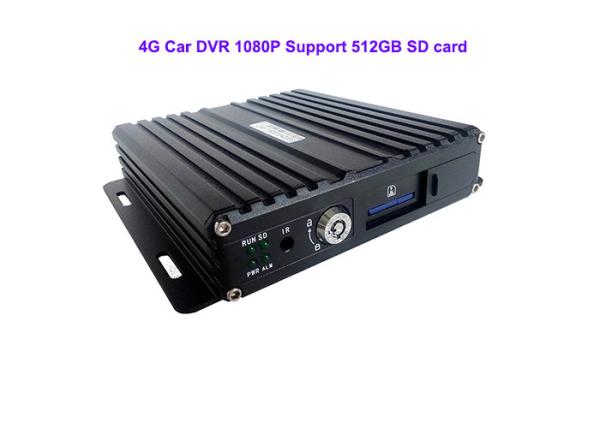

4G Car DVR Mini Size 1080P Mobile DVR, Use Ignition To Control
Power, 3G+4G + Wi-Fi + GPS + G-Sensor
FEATURES:
Built-in high performance Hisilicon chipsets, coded with
H.265/H.264 standard, high
compression rate and image quality
4CH real-time AHD/CVI/TVI 1080P/720P/960H/D1/CIF input
1CH synchronized AV output, 1CH VGA output
Hard drive automatic heating startup in cold weather
On board UPS 8 seconds delay power-off for data protection
Built-in G-sensor to real-time monitor vehicles
Rearview image assistance
Data Storage:
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the SD card
which can make sure
the continuity of video and long service life of the SD card
Built-in ultracapacitor, avoid data loss and sd card damage
caused by sudden outage
Support SD card storage, maximum 512GB
Power:
Professional In-Vehicle power design, 8-36V DC Wide Voltage Range
Multi protection circuits like under-voltage, short, reversed
plug-in
Smart power management system, shutdown under low voltage, low
consumption
when standby
Support to on-time upload GPS info to server when standby, meet
JT/T 794 standard
Transmission Interface:
Support GPS/BD optional, high sensitivity, fast positioning
Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
| Model | AY-MRH8104AHD |
| System | OS | Linux 3.0 |
| Booting time | <30s (from powered on to start recording) |
| Languages | English/simplified Chinese |
| UI | GUI |
| Encoder | H.265 main/high profile ,4CH 1080P/4CH 720P@25FPS/30FPS recording |
| Power | Power in: 8-36V DC, power out for analog camera: 12V/1.5A (4
cameras) |
| Video | Video input | 4ch 1080/720/540p analog/AHD cameras |
| Video output | 2ch video output (1 HDMI output, 1 CVBS output) |
| Preview | Support full screen/dual view/quad view |
| Record mode | Auto record, schedule record, alarm record |
| Record file | Record video and audio at same time |
| Compression | H.265 (high profile up to level 4.1) |
| Audio | Audio input | 4 audio inputs (audio is built in the camera) |
| Audio compression | PMC (according to different camera models) |
| Video process | Record resolution | Supports 1920x1080/1280x720/960x540 |
| Bitrate | 100-8000kbps for each camera |
| Storage | Supports up to 512G SD card |
| Alarm | Alarm input | 3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic
button alarm, 1 G-sensor alarm |
| Alarm output | 1 beeper, alarm OSD |
| Event | Video loss event, over speed event, g-sensor event, storage event,
motion detection event, panic button event |
| Communication | RS485 | One RS485 port |
| RS232 | One RS232 port (for GPS) |
| RJ45 | One RJ45 port, 100m network |
| USB | One USB, can be used for mouse, USB stick |
| Network | Protocol | TCP /IP |
| 3G/4G | Optional, built in |
| 3G/4G (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE) |
| Location | Location | Location feature is optional, supports GPS/GLONASS/BEIDOU,
recording location, speed, live tracking |
| Firmware | Frame rate | Recording frame rate: 1-30fps able for each camera |
| License ID | Supported |
| Camera name | Supported |
| OSD | Display and record time, license ID, camera name, location, speed |
| Firmware upgrade | Can use USB disk/SD card/remote upgrade via 4G |
| G-sensor | Supported |
| Play back | Supports play back, file listed by time, alarm |
| Play speed | Supports from 1/32 to 32 |
| Software | Player | Player software, play multiple cameras together, can also play the
encrypted file |
| CMSV6 | Used for 4G/3G model only, support live view/live
tracking/historical track/remote upgrade |
| Power input | Power input | 8-36VDC |
| Power output | Power output | Power output for cameras: 10.5V/1.5A (8 cameras) |
| Other | Size | 162.3x133.0x30.2 mm |
| Weight | About 1.08kg |
| Time | Internal clock, can synchronize with GPS |
| Dual bit stream | Two different bit stream for recording and live streaming via 4G/3G |
| Power protection | Protect power from short cut, over load and error connection |
| Default | Can set to default setting |
| Light indicator | Light indicator for power, run, alarm network, 4G/3G |
| Over write | Supported |
| Time synchronize | Synchronize with GPS |
| Working condition | Working temperature | -25 to 55°C |
| Working humidity | 5-93% |
